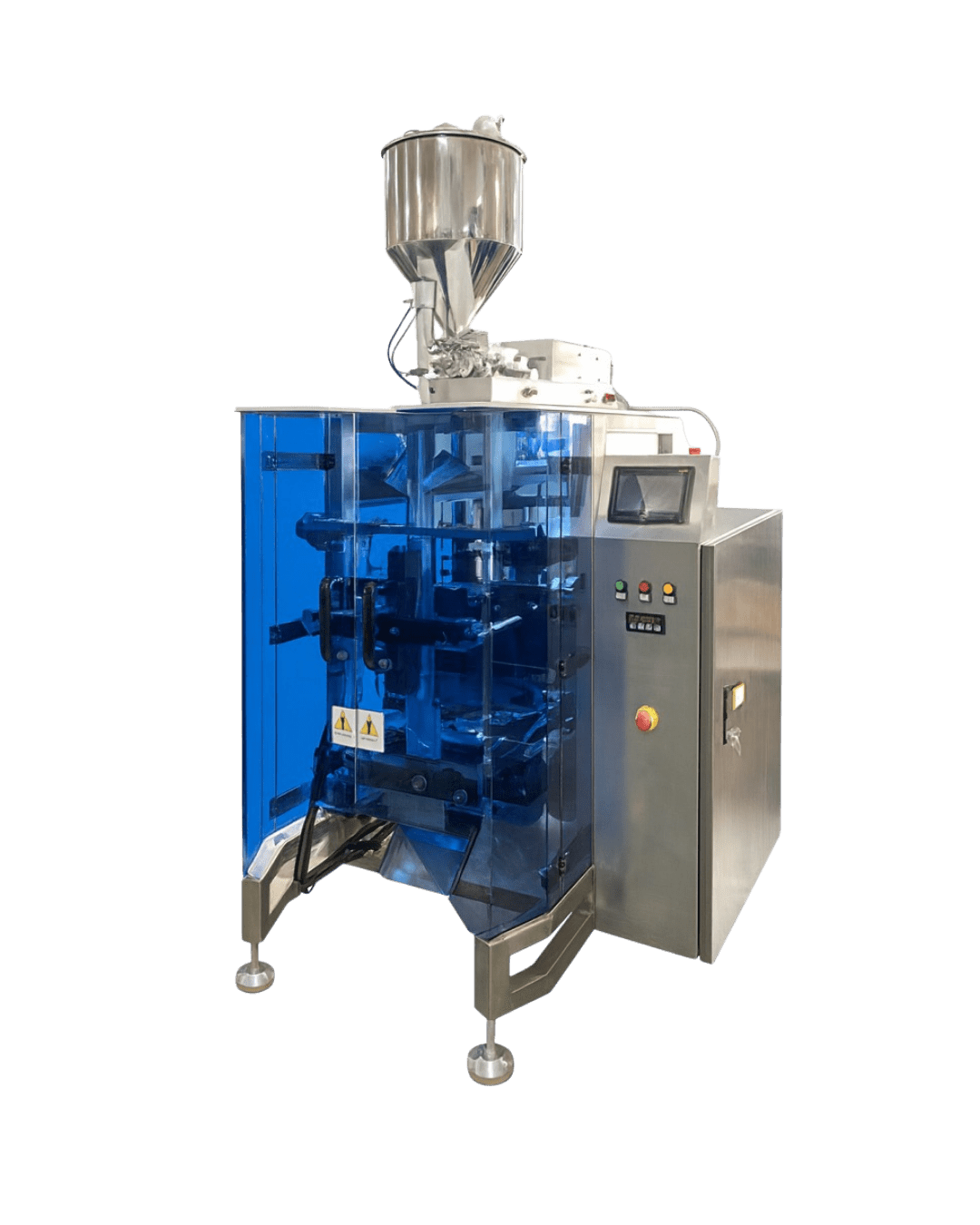

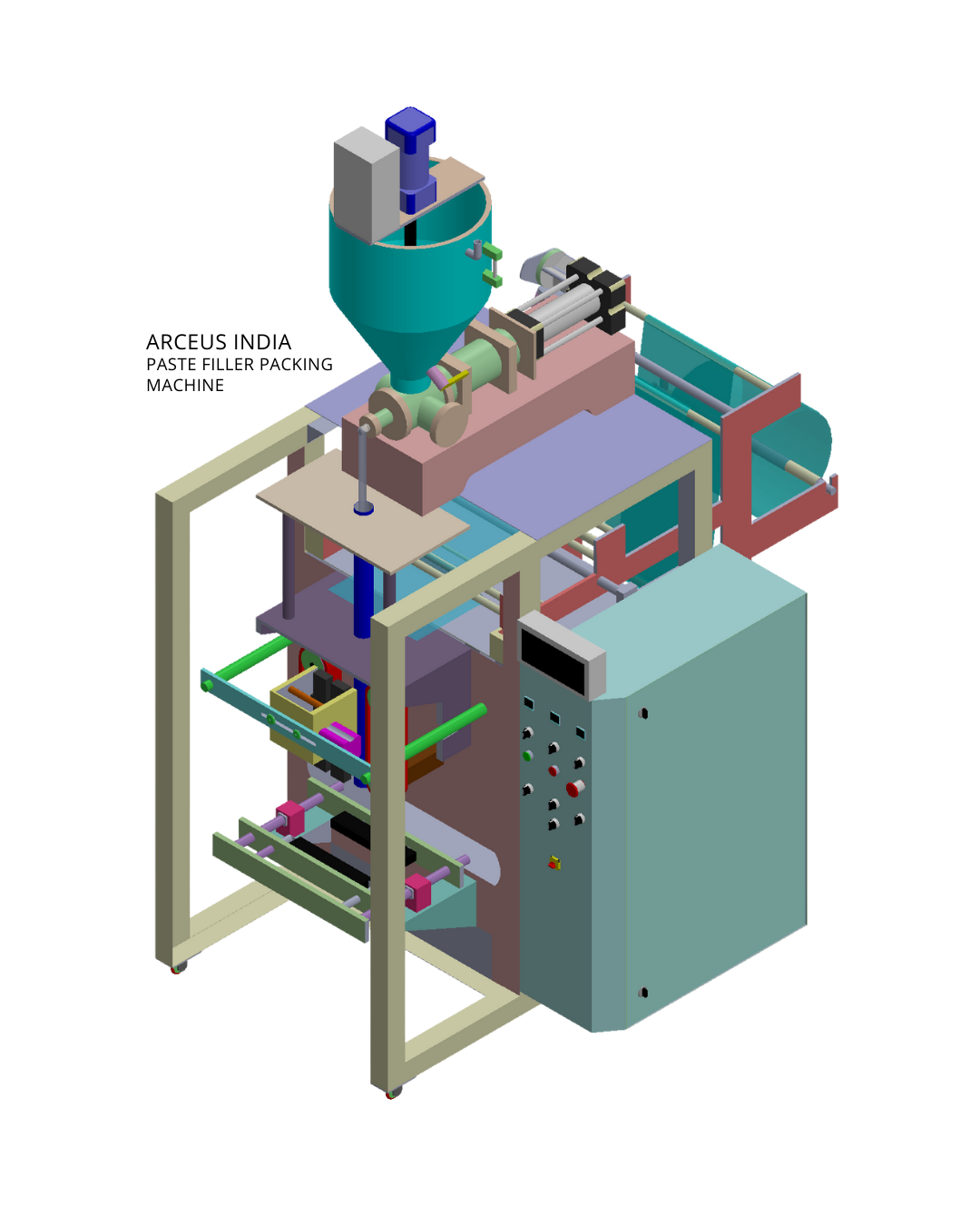

Paste Filler Packing Machine
The Paste Filler Packing Machine is a fully automatic, high-performance packaging solution engineered for precise filling and sealing of viscous and semi-viscous products, also known as a Batter Packing Machine. Equipped with an advanced double-piston pneumatic filling system, PLC-based controls, and 7-inch HMI touchscreen, this machine ensures superior accuracy, hygiene, and efficiency for diverse paste packaging applications.
Automatic 10-20 Fills per Minute
Automatic 10-20 Fills per Minute
Automatic 10-20 Fills per Minute
Speed varies by filling volume and product viscosity.
Multi Head Weigh Filler Packing Machine
The Arceus India Multihead Weigh Filler Machine range (available from 10 Head to 14 Head) is engineered for high-speed, high-accuracy pouch packaging across medium to ultra-large production lines. Designed,
developed, and manufactured in India, these machines deliver consistent weighing accuracy, minimal product giveaway, and maximum output efficiency, making them the preferred choice for FMCG, snacks, grocery, frozen food, and hardware industries.
*Automatic 55-85 Pouches per Minute * *Automatic 55-85 Pouches per Minute * *Automatic 55-85 Pouches per Minute *
Our Applications
Crafted for Every Pouch Format
Pillow Packing
Gusset Packing
3-side Seal Packing
Stand-Up Pouches
Leak-Proof Sealing
Pillow Packing
Gusset Packing
3-side Seal Packing
4-side seal Packing
Technical Specification
Former – Paste Filler Packing Machine
- Filling Range: 500g – 1000g
- Speed: 15–20 fills/min (for 500g) 10–12 fills/min (for 1kg)
- Tank Capacity: 30 kg with optical level sensor
- Filling System: Double piston filler with pneumatic drive
- Film Roll Width: 220 mm – 420 mm
- Forming System: Former type
- Control System: PLC-based (Innovance/Delta) with Omron/NHP SMPS
- Sealing Operations: Pneumatic vertical & horizontal sealing, batch cutting, paste filling
- Pneumatic Accessories: Janatics (India)
- Material of Construction: Contact Parts: SS 304 (food-grade) Non-Contact Parts: SS 202 with cladding
- Safety System: Optical sensor for tank monitoring
Collar – Paste Filler Packing Machine
- Filling Range: 500g – 1000g
- Speed: 15–20 fills/min (for 500g) 10–12 fills/min (for 1kg)
- Tank Capacity: 30 kg (with optical sensor)
- Filling System: Double piston, pneumatic operation
- Film Roll Width: 220 – 420 mm
- Forming System: Collar type (Premium shaping)
- Controls: Innovance/Delta PLC with Omron/NHP SMPS
- Sealing Operations: Horizontal seal, vertical seal, batch cutter, paste filling, pneumatic sealing
- Pneumatic Accessories: Janatics (India)
- Material of Construction: Contact Parts: SS 304 Non-contact Parts: SS 202 cladding
- Safety: Optical sensor for tank monitoring
Instagram / Youtube embedded Video
Why choose Arceus India’s Paste Filler Machine?
- Double-piston pneumatic system ensures accurate dosing with minimal wastage
- Tank level sensors prevent overfill/underfill issues
- Leak-Proof Sealing – Pneumatic sealing system ensures perfect pouch integrity
- Complete Support – Installation, training, and lifelong service assistance
- Made in India – Indigenous technology with competitive pricing and faster support
Get In Touch Packaging Production Business Operations
Frequently Asked Questions
The double-piston pneumatic filling system delivers high accuracy of ±1-2%, ensuring consistent product weight in every pouch with minimal wastage.
The double-piston pneumatic system provides precise volumetric filling by using synchronized pistons to draw and dispense exact product quantities, ensuring consistent fill weights.
The optical level sensor automatically monitors paste levels in the tank, preventing overfill/underfill situations and alerting operators when refilling is needed.
Yes, the machine can be adjusted to handle various viscosities from semi-liquid to thick pastes by modifying piston speed and pressure settings through the HMI.
An automatic batter packing machine automatically fills and seals batter into pouches with minimal human effort, ensuring hygienic and fast packing for large-scale production.
