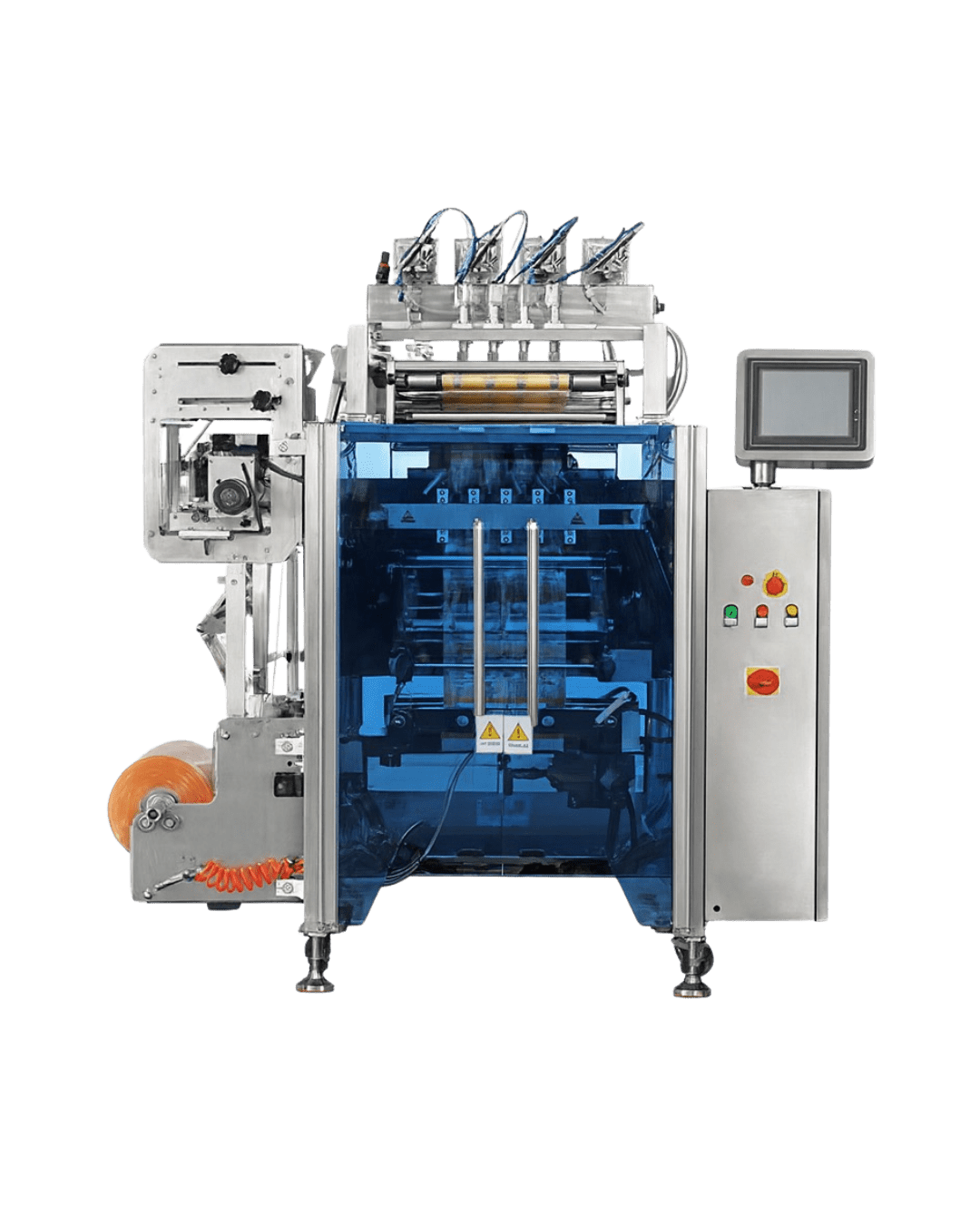

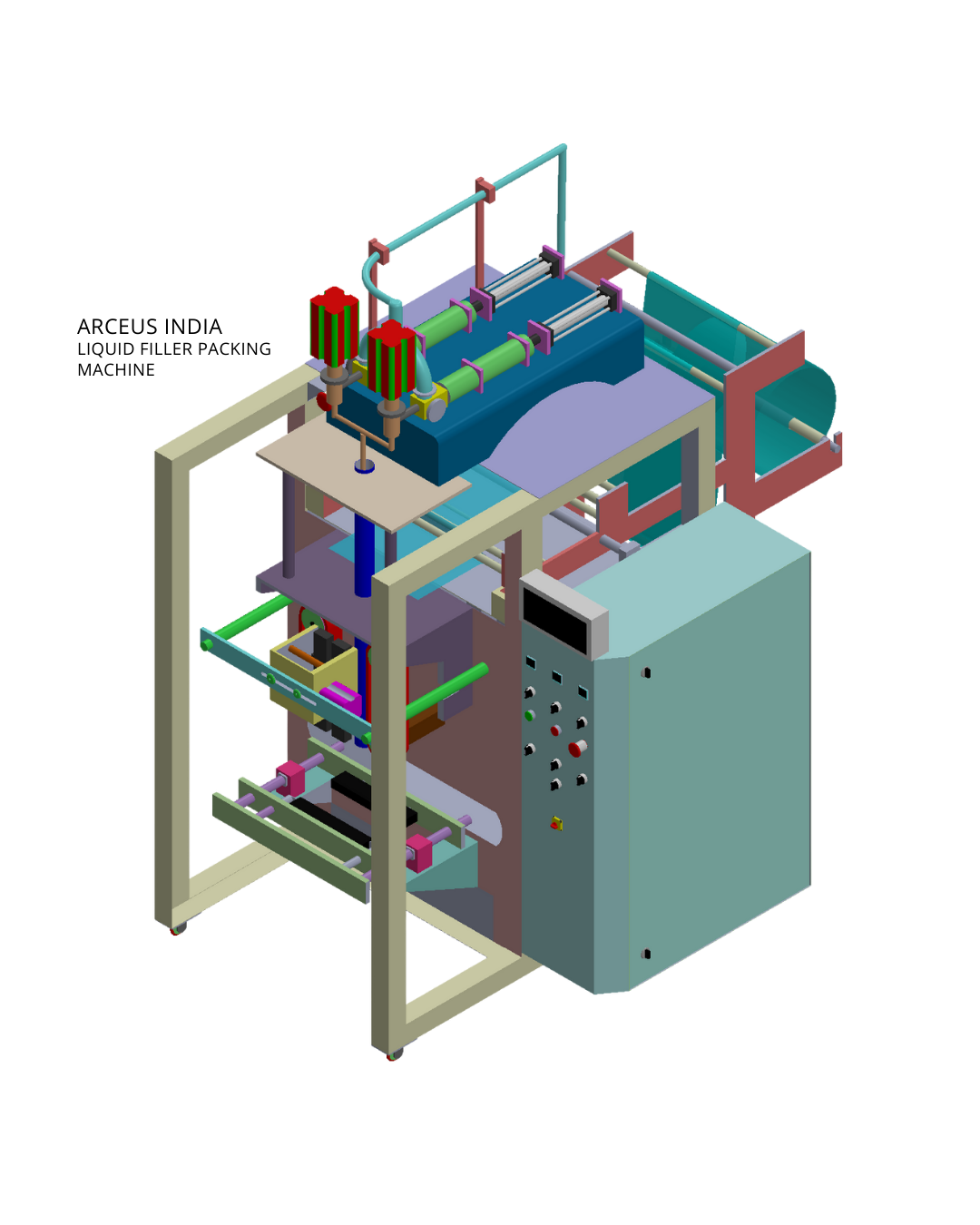

Liquid Filler Packing Machine
Automatic 30-80 Pouches per Minute
Automatic 30-80 Pouches per Minute
Automatic 30-80 Pouches per Minute
Speed varies by product viscosity and pouch size.
Multi Head Weigh Filler Packing Machine
The Arceus India Multihead Weigh Filler Machine range (available from 10 Head to 14 Head) is engineered for high-speed, high-accuracy pouch packaging across medium to ultra-large production lines. Designed,
developed, and manufactured in India, these machines deliver consistent weighing accuracy, minimal product giveaway, and maximum output efficiency, making them the preferred choice for FMCG, snacks, grocery, frozen food, and hardware industries.
*Automatic 55-85 Pouches per Minute * *Automatic 55-85 Pouches per Minute * *Automatic 55-85 Pouches per Minute *
Our Applications

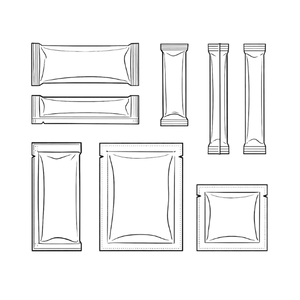

Crafted for Every Pouch Format
Pillow Packing
Gusseted Pouch Packing
3-side seal Packing
Leak-Proof Sealing
Pillow Packing
Gusset Packing
3-side Seal Packing
4-side seal Packing
Technical Specification
Former – Liquid Filler Machine
- Filling Range: 50 ml – 1000 ml (customizable up to 5 liters)
- Output Speed: 30 – 80 pouches per minute
- Film Roll Width: 150 mm – 420 mm (customizable)
- Forming System: Former type
- Sealing System: Pneumatic/servo-driven horizontal and vertical sealing jaws
- Filling System: Volumetric piston/servo pump for high accuracy
- Tank Capacity: 30 – 50 liters (with level sensor)
- Material of Construction: Contact Parts: SS304 Non-Contact Parts: SS202/MS with powder coating
Collar – Liquid Filler Machine
- Filling Range: 50 ml – 1000 ml (customizable up to 5 liters)
- Output Speed: 30 – 70 pouches per minute
- Film Roll Width: 200 mm – 420 mm (customizable)
- Forming System: Collar type (Premium shaping)
- Sealing System: Pneumatic/servo-controlled horizontal & vertical sealing jaws
- Filling System: Volumetric piston/servo pump for high accuracy
- Tank Capacity: 30–50 liters with optical level sensor for auto-refill
- Material of Construction: Contact Parts: SS304 Non-Contact Parts: SS202/MS with powder coating
Instagram / Youtube embedded Video
Why choose Arceus India’s Liquid Filler Machine?
- Servo-driven piston/pump system ensures accurate dosing with minimal wastage
- Complete form-fill-seal operation in one seamless process
- Pneumatic/servo sealing system ensures perfect pouch integrity
- Suitable for beverages, food, pharma, cosmetic, and industrial liquids
- Tank level sensors with auto-refill for continuous operation
Get In Touch Packaging Production Business Operations
Frequently Asked Questions
The machine automatically unwinds roll film, forms it into pouches using the collar/former mechanism, fills
the precise liquid volume, seals vertically and horizontally, and cuts individual pouches in one continuous
automated sequence.
Minimal maintenance—regular cleaning of contact parts (especially filling nozzles and sealing jaws), periodic
lubrication, and routine inspection. The system is designed for continuous operation with minimal downtime.
While the standard models are designed for hygienic filling, aseptic versions with additional sterilization
features can be customized for ultra-hygienic pharmaceutical and beverage applications.
Product changeovers typically take 15-30 minutes including cleaning of contact parts, depending on product
type and viscosity difference between products.
