Flow Wrap Packing Machine
Solid, uniformly shaped products like biscuits, bars, soaps, and bakery items need a wrap that holds a tight seal without slowing down the line. A flow wrap packing machine wraps each product in a continuous film tube and seals both ends in one motion, which is why it has become the standard choice for manufacturers who need high speed output without compromising on seal quality or shelf presentation.
Many manufacturers switch to flow wrap after outgrowing manual or semi automatic wrapping, only to find that not every flow wrap machine handles their product’s exact dimensions, film type, or output target the same way. Getting the film tension, seal temperature, and product spacing right for your specific item is what separates a line that runs cleanly from one that needs constant operator correction.
Automatic 70-120 Pouches per Minute
Automatic 70-120 Pouches per Minute
Automatic 70-120 Pouches per Minute
Speed varies by model, product type & film specifications.
Multi Head Weigh Filler Packing Machine
A flow wrap packaging machine is built around products that keep their shape through the wrapping process, which includes chocolate bars, biscuits, soap bars, and similar solid items. The film forms around the product as it moves continuously along the line, and the seal closes at both ends without stopping the film feed. This continuous motion is what allows flow wrap to run faster than most other formats for compatible products.
An automatic flow wrap machine removes manual film loading, product placement, and seal triggering from the process, which matters most for manufacturers running multiple shifts. Automation also reduces the variability that comes from manual handling, so seal quality stays consistent whether the line is running at the start of a shift or the end of one.
*Automatic 55-85 Pouches per Minute * *Automatic 55-85 Pouches per Minute * *Automatic 55-85 Pouches per Minute *
Our Applications
Biscuits are one of the most common applications for flow wrap because the product is fragile, uniform in shape, and needs a moisture resistant seal to stay crisp. A flow wrap machine for biscuits has to balance gentle product handling with a fast seal cycle, since biscuits can chip or crack if the film tension or product spacing is not tuned correctly for the specific size and weight of the item.
Manufacturing conditions in India, from ambient humidity to power supply variation, affect how consistently a packing line performs over a full shift. A flow wrap machine india manufacturers can rely on needs to be built for these conditions from the start, not adapted after installation. Arceus builds and supports its flow wrap machines domestically, which also means faster access to spares and service compared to imported equipment.
Choosing a flow wrap machine manufacturer is not just about the equipment on day one, it is about who helps you troubleshoot seal issues, film compatibility problems, or changeovers six months into production. Ongoing manufacturer support is often the difference between a line that stays productive and one that loses hours to unresolved issues.
Arceus India builds flow wrap packing machines around the specific product being packed, rather than offering a single configuration for every use case. We work with manufacturers to match film tension, seal cycle time, and product spacing to the exact item, whether that is a delicate biscuit or a denser bar product. Our team supports installation, operator training, and ongoing service, so the line stays productive well past commissioning, not just during the first few production runs.
Crafted for Every Pouch Format
Horizontal Flow Wrapping
Single Product Packing
Multi-Product Packing
Pillow Pack Style
4 Side Sealing Packing
Gusseted Wrapping
Conveyor Belt Flow
Wrap Packing Machine
The Conveyor Belt Flow Wrap Machine is designed for compact to medium-sized product packaging with
exceptional speed and precision. Ideal for small to medium bakery items, confectionery, pharmaceutical
products, and industrial components, this model combines efficiency with space-saving design.
Model: 350 Servo Conveyor Belt Flow Wrap Machine
Technical Specification:
- Film Width: Up to 340 mm
- Film Roll Diameter: Up to 320
- Pouch Width: 50 mm – 160 mm
- Product Height: Up to 45 mm
- Blade Size: 65 mm – 190 mm
- Speed: 70 – 80 pouches/min
- Servo Motors: 3-Servo Drive System
- Control System: PLC with Touch Screen HMI
Model: 450 Servo Conveyor Belt Flow Wrap Machine
Technical Specification:
- Film Width: Up to 420 mm
- Film Roll Diameter: Up to 450 mm
- Pouch Width: 50 mm – 280 mm
- Product Height: Up to 52 mm
- Blade Size: 65 mm – 280 mm
- Speed: 70 – 120 pouches/min
- Servo Motors: 3-Servo Drive System
- Control System: PLC with Touch Screen HMI

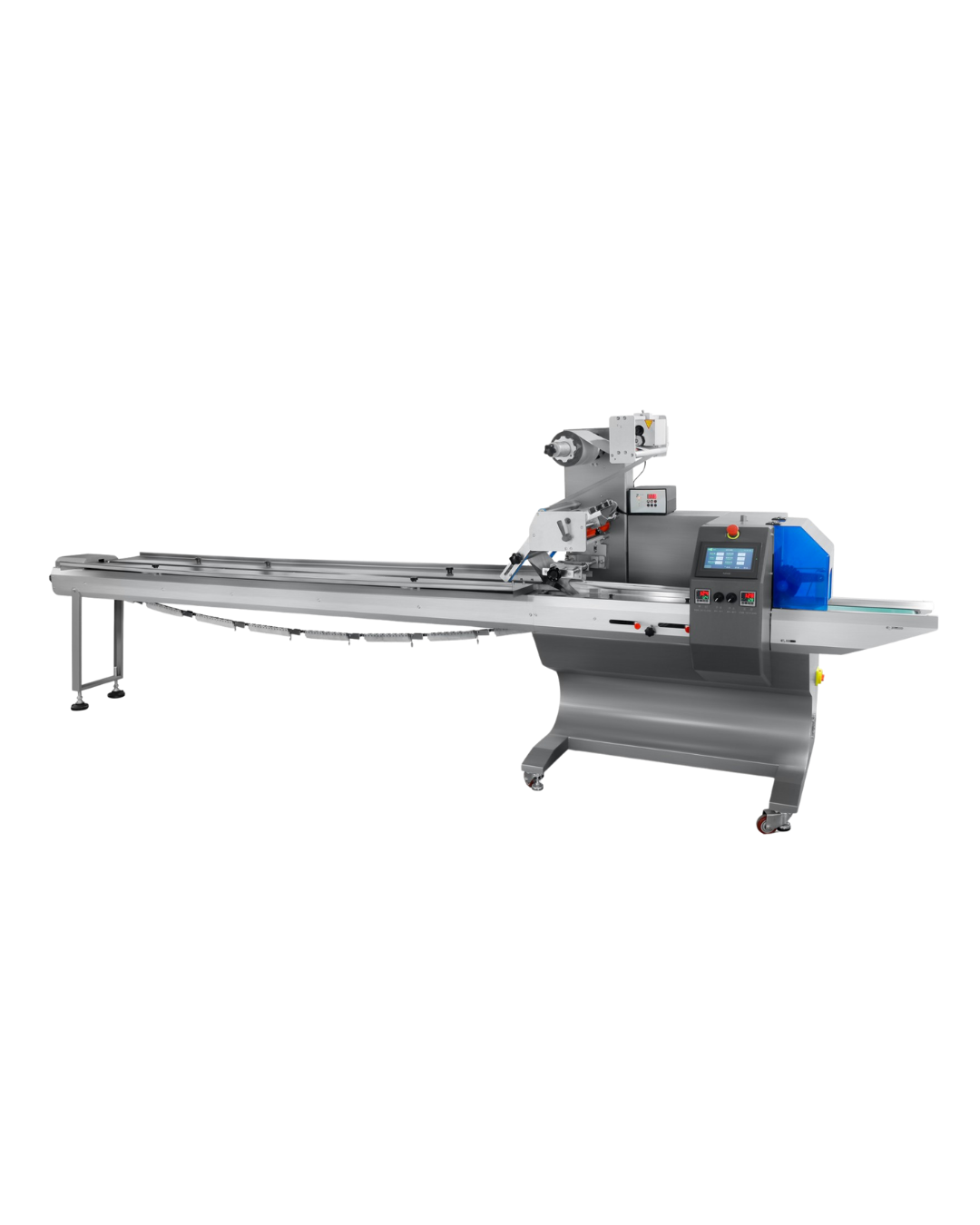

Chain Pusher Flow Wrap
Packing Machine
Model: 350 Servo Chain Pusher Flow Wrap Machine
Technical Specification:
- Film Width: Up to 340 mm
- Film Roll Diameter: Up to 320 mm
- Pouch Width: 50 mm – 160 mm
- Product Height: Up to 45 mm
- Blade Size: 65 mm – 190 mm
- Speed: 70 – 120 pouches/min
- Servo Motors: 3-Servo Drive Technology
- Sensors: High-Sensitivity Color Mark Sensor
Model: 450 Servo Chain Pusher Flow Wrap Machine
Technical Specification:
- Film Width: Up to 420 mm
- Film Roll Diameter: Up to 450 mm
- Pouch Width: 50 mm – 280 mm
- Product Height: Up to 52 mm
- Blade Size: 65 mm – 280 mm
- Speed: 70 – 120 pouches/min
- Servo Motors: 3-Servo Drive Technology
- Sensors: High-Sensitivity Color Mark Sensor
Collar - Flow Wrap Machine
Technical Specification:
- Film Width: Up to 340 mm
- Film Roll Diameter: Up to 320 mm
- Pouch Width: 50 mm – 160 mm
- Product Height: Up to 45 mm
- Blade Size: 65 – 190 mm
- Speed: 70 – 120 pouches/min
- Forming System: Collar Type (Premium)
- Servo Motors: 3-Servo Drive System
- Sensors: High-Sensitivity Color Mark Sensor
Instagram / Youtube embedded Video
Why choose Arceus India’s Flow Wrap Machine?
- 3-Servo Precision – Advanced servo technology for synchronized motion and consistent quality
- Intelligent Control – PLC-based HMI with touchscreen for intuitive operation
- Zero Wastage – No-film and no-product stop mechanisms prevent material loss
- Energy Efficient – Low power consumption with continuous operation capability
- Flexible Sizing – Two models to suit different product dimensions and production needs
Get In Touch Packaging Production Business Operations
Frequently Asked Questions
Flow wrap works best for solid, uniformly shaped products such as biscuits, chocolate bars, soap bars, and similar items that hold their shape through the wrapping process.
Flow wrap generally runs faster than pouch or bag formats for compatible products, since the film moves continuously rather than stopping to form a new package on every cycle.
A flow wrap line is tuned to a specific range of product dimensions, so significant size changes usually require a format changeover, though Arceus machines are built to make these changeovers as fast as possible.
Film compatibility depends on the product's moisture sensitivity, shelf life requirements, and branding needs. Arceus helps manufacturers select a film type suited to their specific product before finalizing machine setup.
Yes, Arceus provides installation support, operator training, and ongoing service for every flow wrap packing machine, so manufacturers have a direct point of contact for troubleshooting as production scales.
